SCKTT-4000AR
With brand new Hyper Precision Mounting System lite VII (H.P.M.S. V), installation is easier and faster.
Fully support LGA 1851 / AM5, freely select your CPU.
Asymmetrical tower, 100% compatible with all kinds of RAM, VRM.
Wonder Tornado 120 PWM fan, stronger wind pressure, higher performance.
Fan bracket can apply to all 120 mm fans, easy to upgrade.
155 mm in height, fits all cases, including mini ITX.
ARGB lighting effect support, best for full view transparent PC cases.
KOTETSU MARK 4
.png)

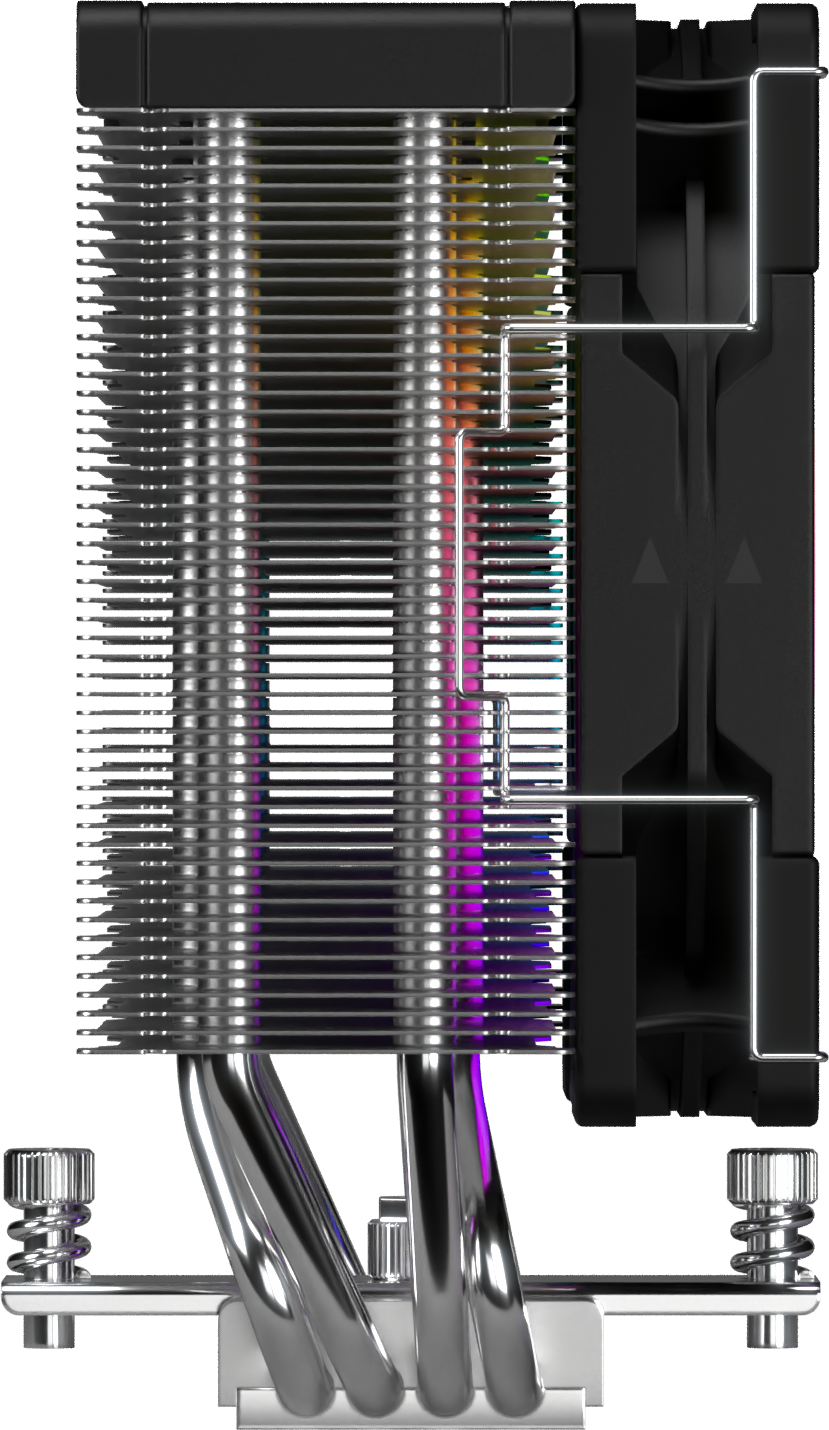

Zero interference
Brand new asymmetrical tower, bending back and upper.
Fits all kinds of RAM, heatsink, motherboards.
Perfectly for installation.
Highly compatibility
155 mm height, fits all cases.

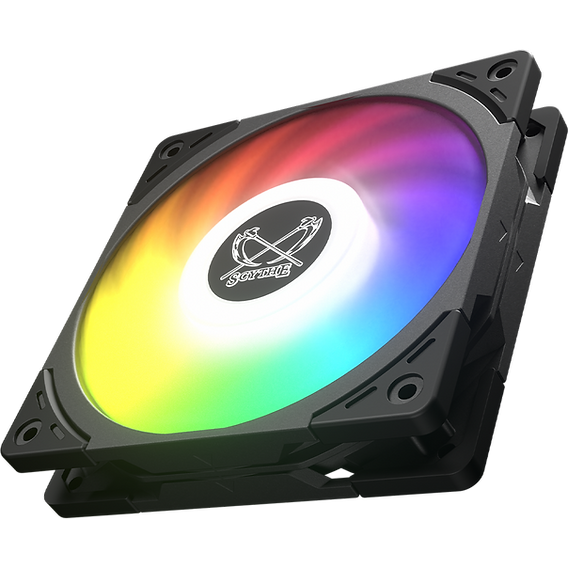

Wonder Tornado 120 ARGB
Static pressure optimize
Brand new nine swirl blades with enforced frame, focus the air flow, increasing pressure, carry away the heat quickly.
Efficiently bearing system
Featuring Sealed Precision FDB, WT120 provides quiet operation as well as a long lifespan. The bearing and pressure shaft are made of high-quality compressed metal to guarantee minimum tolerance and excellent stability and reliability.
Silent Operation
With rubber pads in corners of fan, absorb vibration when fan runs, even when fan runs in full speed, it’s still stable and silent, fully comfortable experience.
ARGB lighting
Lighting flows along the fan blades, the meticulous lighting with depth upgrades the visual experience to another level, and creates the build style with fully immersive experience.
Simplify installation process
Scythe easy-to-install H.P.M.S. VII mounting system presents more optimal contact pressure to the latest CPUs on the market included INTEL LGA 1851 and AMD AM5 support.
SPECIFICATIONS
Model Name :
KOTETSU MARK 4 ARGB
Model Number :
SCKTT-4000AR
Socket :
Intel : LGA 1851 / 1700 / 1200 / 115X
AMD : AM5 / AM4
Dimension(w/Fan) :
(W) 134 X (D) 80 X (H) 155 mm
Heatpipe :
06mm x 4
Weight(w/Fan) :
770.5g
EAN：
4573615590694
UPC：
812623022532
FAN SPEC Model Name :
Wonder Tornado 120 ARGB PWM Fan ×1
Fan Size :
(W) 120 X (D) 120 X (H) 26 mm (含膠墊)
Fan Speed :
350±200〜2000±10% rpm
Air Flow :
7.68 ~ 60.29 CFM
Statics :
0.05 ~ 2.45 mmH2O 0.49 ~ 24.03 Pa
Noise :
3.00 ~ 26.88 dBA
Voltage :
12 V
Rate Current :
0.15 A
Connector :
4 Pin PWM
